PL-32A-MS-500V-4P-3H-IP56-Z22

CEE-plug 32A 500V 3h, brass, IP56

Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.

Features

Logo
WISKA-Order no. 10010766
Type PL-32A-MS-500V-4P-3H-IP56-Z22
Material Brass
Voltage max. (V) 500 V
Current 32 A
Protection class IP56
Temp. range min -25 °C
Temp. range max 45 °C
Terminals/poles 3-pole + E
Clock face position 3h
plug insert CEE
Type of cable gland M 36 x 2,0
Ø cable diameter min 20 mm
Ø cable diameter max 22,5 mm
Variations on request
Remarks:

CEE plug 32A
Material: brass/red brass
according to DIN EN 60309, CEE 17/2, IEC 309, IP56
Terminal/Poles 3-pole + PE
Clock face position protection earth conductor 3h
1 cable entry M36x2

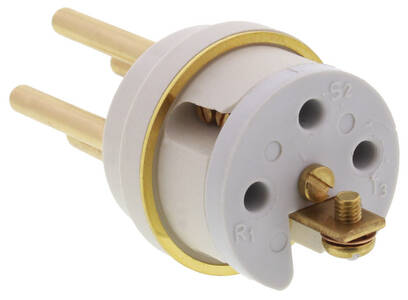

Spare parts
