EMSKV 16 RW

Railway cable gland, brass nickel-plated, with short thread, M16

Features

Logo Logo Logo Logo Logo
Material cable gland Brass nickel-plated
Material sealing gasket EPDM
Material clamping cage Polyamide UL94-V0
Hazard level EN acc. 45545 R22=HL3 / R23=HL3 / R24=HL3
Protection class IP69, IP68 (5 bar 30 min)
Thread type M
Ø Connection thread D 16
Lead 1,5
Length screw-in thread L 5 mm
Temp. range min -40 °C
Temp. range max 100 °C
Ø cable diameter min 4,5 mm
Ø cable diameter max 10 mm
Key width SW 20 mm
Collar diameter (E) 22 mm
Total length TL 26 mm - 34 mm
Install. torques fitting 4 N m
Install. torques cap nut 4 N m
Type of cable anchorage A
Impact category 6
Surface Nickel-plated
Order no. nickel-plated 10104294
Type EMSKV 16 RW
Packing unit 50
ETIM-Classification EC000441
Remarks:

Meets fire protection standard EN 45545 and all requirements of Hazard Level 3 with fire resistance E30

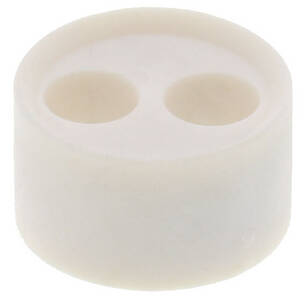

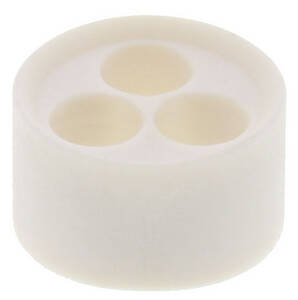

Recommended accessories
