Ex-525/D/2x24-Z14

Ex Light fitting with protection guard brass max. 60W 230V E27, IP66/67

Features

Logo Logo
WISKA-Order no. 10109149
Type Ex-525/D/2x24-Z14
Material Brass
Globe colour Clear
Material guard Brass
Voltage 230 V
Voltage max. (V) 250 V
Type of Voltage AC
Frequence 50/60 Hz
Protection class IP66 / IP67
Operational areas Outdoor, Explosion protection
Temp. range min -40 °C
Temp. range max 55 °C
Lampholder E27
Number of lampholder 1 ST
Lamp Incandescent lamp, LED, Fluorescent lamp
Lamp not included
Type of cable gland M24x1,5 Z 14 / 12-14,5mm
Material cable gland Brass
Using for cable gland Using for cable gland
Type of cable armoured
Ø cable diameter min 12 mm
Ø cable diameter max 14,5 mm
Mounting Upside, Upside down
Approval IECEx EPS 17.0060X, EPS 17 ATEX 1 120 X
Zone 21, 1
Weight 3,47 kg
Remarks:

Light fittings with protection guard,
brass, 525, up to T6, max. 60W, IP66/IP67
Ignition protection: de
Explosion protection:
II 2G Ex db eb IIB+H2 T6/T5/T4 Gb
II 2G Ex db eb op is IIB+H2 T6 Gb (with LED)
II 2D Ex tb IIIC T85°C/T100°C/T135°C Db
II 2D Ex tb op is IIIC T85°C Db (with LED)
Zone: 1
Certificate: EPS 17 ATEX 1 120 X
IECEx EPS 17.0060X
Lampholder: E27
Lamp: incandescent lamp up to 60W;
fluorescent lamp up to 15W;
LED lamp OSRAM LED SUPERSTAR CLASSIC A 60 DIM 9W/827 E27
(not included in delivery)
2 cable glands Ex-KVM24x1,5-Z14 -O-

Recommended accessories

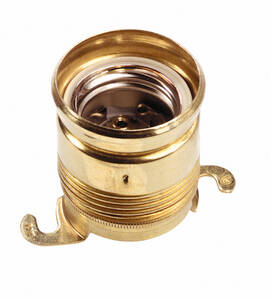

Spare parts
